- Size: 5 * 3.2* 1.0mm
- Place of Origin: CHINA BEIJING
- Brand Name: space

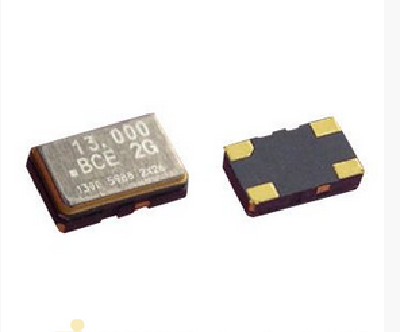

- Model Number: VCTCXO
- Weight: 3.000 kg
Frequency range: 2 to 50MHz
Initial calibration tolerance (at 25℃ ±2℃): ±30ppm (typical)
Frequency stability: ±25~±100ppm
Operating temperature range: -40 to 85°C
Aging: ±5ppm
Supply voltages: 3.3 , 5.0V
Current consumption: 35mA (maximum)
Output :TTL
Voltage control: 1.65V ±1.5V ;2.5V±2V
Pulling: ±60 to 150ppm
Storage temperature range: -40 to 85℃
Packaging: 5 × 3.2 × 1.0mm, 7 × 5 × 1.5mm
