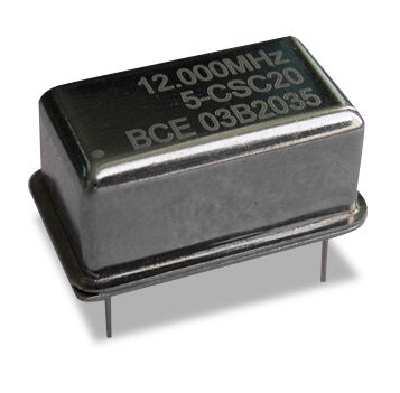

Tcxo Ocxo Special Frequency 11.2896 MHz to 10.48576 MHz Index of High - Temperature

Tcxo Ocxo Special Frequency 11.2896 MHz to 10.48576 MHz Index of High - Temperature

  • Min.Order Quantity: 5 Sets
  • Supply Ability: 50000 Sets per Month
  • Port: beijing
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1995-08-31
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  20.2*12.8
  • Place of Origin:  China bejing
  • Brand Name:  space
  • Model Number:  TCXO
  • Weight: 1.000 kg

TCXO
Frequency: 10 to 40MHz
Initial calibration tolerance (at 25ºC ±2ºC): ±1ppm typical
Frequency stability VS operating temperature range: ±0.28ppm Operating temperature range: -40 to 85°C/-55 to 95°C
Aging: ±1ppm
Supply voltage: 5.0, 8 ,9  and 12V
Current consumption: 20mA (maximum)
Output: TTL and CMOS
Start-up time: 2ms (maximum)
Frequency tuning range: VCTCXO only frequency tuning range: ±5ppm min
Control voltage range: 2.5V ±2V
Linearity: 10% (maximum)
Storage temperature range: -55 to 85ºC
Packaging: DIP14, 20.2 × 12.8 × 10mm

OCXO//OCXO
Frequency Range10~100MHz,
Standard Frequency10, 13, 16.384, 20, 26, 38.88,100MHz
vs Operation Temp. Range /- 5 x 10-8,~ /- 5 x 10-7
±5%  vs Vcc Change /- 5% /- 2 x 10-8vs
±10% vs Load Change /- 10% /- 2 x 10-8
vs Aging /- 4.6 x 10-6 Ten years @25after 30 days Operation
Temperature Range -20~70C
Supply Voltage5V, 9V, 12V
Current Consumption (@12Vcc) 2.5Wmax at Turn-on,
                                                                         1.0Wmax after warm up at 25C
Output   :TTL/CMOS
SSB Phase Noise
    (10MHz, typical)
    -90dBc@10Hz
   -115dBc@100Hz
 -140dBc@1kHz
-150dBc@10kHz
Warm-up Time@25C
  Typical /- 1 x 10-7 after 5 minutes
Frequency Tuning Range /- 3~ /- 8ppm
                                                        /- 5ppm typicalControl (typical)
Voltage Range2.5V /- 2V
Slope Polarity:Positive
Linearity:10%max
Package:12A (20.2*12.8*10mm)
Storage Temperature Range:-40~ 85

  • Size:  20.2*12.8
  • Place of Origin:  China bejing
  • Brand Name:  space
  • Model Number:  TCXO
  • Weight: 1.000 kg

TCXO
Frequency: 10 to 40MHz
Initial calibration tolerance (at 25ºC ±2ºC): ±1ppm typical
Frequency stability VS operating temperature range: ±0.28ppm Operating temperature range: -40 to 85°C/-55 to 95°C
Aging: ±1ppm
Supply voltage: 5.0, 8 ,9  and 12V
Current consumption: 20mA (maximum)
Output: TTL and CMOS
Start-up time: 2ms (maximum)
Frequency tuning range: VCTCXO only frequency tuning range: ±5ppm min
Control voltage range: 2.5V ±2V
Linearity: 10% (maximum)
Storage temperature range: -55 to 85ºC
Packaging: DIP14, 20.2 × 12.8 × 10mm

OCXO//OCXO
Frequency Range10~100MHz,
Standard Frequency10, 13, 16.384, 20, 26, 38.88,100MHz
vs Operation Temp. Range /- 5 x 10-8,~ /- 5 x 10-7
±5%  vs Vcc Change /- 5% /- 2 x 10-8vs
±10% vs Load Change /- 10% /- 2 x 10-8
vs Aging /- 4.6 x 10-6 Ten years @25after 30 days Operation
Temperature Range -20~70C
Supply Voltage5V, 9V, 12V
Current Consumption (@12Vcc) 2.5Wmax at Turn-on,
                                                                         1.0Wmax after warm up at 25C
Output   :TTL/CMOS
SSB Phase Noise
    (10MHz, typical)
    -90dBc@10Hz
   -115dBc@100Hz
 -140dBc@1kHz
-150dBc@10kHz
Warm-up Time@25C
  Typical /- 1 x 10-7 after 5 minutes
Frequency Tuning Range /- 3~ /- 8ppm
                                                        /- 5ppm typicalControl (typical)
Voltage Range2.5V /- 2V
Slope Polarity:Positive
Linearity:10%max
Package:12A (20.2*12.8*10mm)
Storage Temperature Range:-40~ 85
