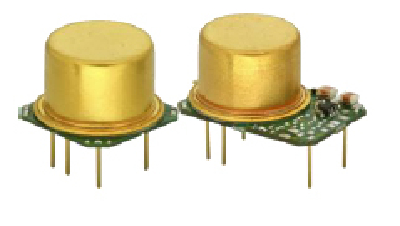

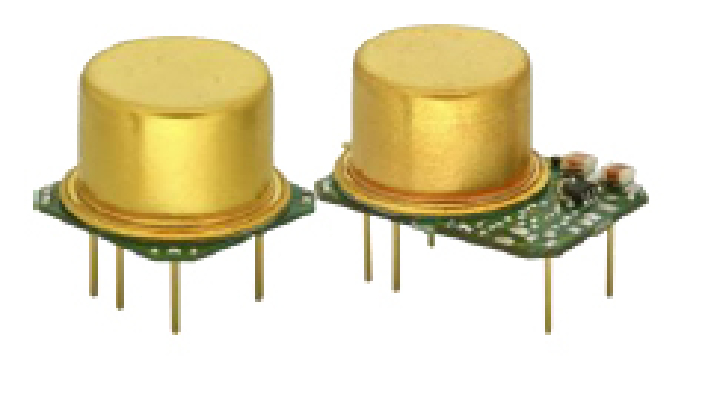

- Size: 20.2 x 12.8 x 10mm
- Place of Origin: CHINA BEIJING
- Brand Name: space
- Model Number: OCXO
- Weight: 3.000 kg
Frequency range: 30-300MHz
Standard frequency: 30, 100 and 150MHz
Frequency stability: ±1x10-8 for 100MHz, ±3x10-8 for 300MHz
Operating temperature range: -40-85℃
Output: Sine 3dBm min, HCMOS
Aging at 25°C after 30 days operation:
±0.5ppb/day, ±50ppb/year for 100MHz
±2ppb/day, ±0.2ppm/year for 300MHz
Voltage: 3.3, 5V
Current consumption: 160mA maximum at turn-on, (at 5Vcc) 35mA maximum after warm-up at 25°C
Short term stability: 1x10-11 for 100MHz, 5x10-11 for 300MHz
SSB phase noise (10MHz, typical):
-105dBc@10Hz
-132dBc@100Hz
-148dBc@1kHz
-155dBc@10kHz
Carton size: 20.2 x 12.8 x 10mm
Q:397635654 E-mail：export@bjcec.com
