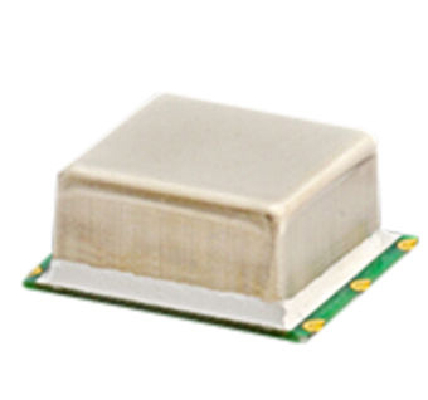

- Size: 20.2 x 20.2 x 12mm
- Place of Origin: CHINA BEIJING
- Brand Name: space
- Model Number: OCXO
- Weight: 3.000 kg
Frequency range: 30-300MHz
Standard frequency: 30,100 and 300MHz
Frequency stability:
±3×10-9 for 10MHz
±5×10-9 for 300MHz
Operating temp range: -40-85℃
Output: Sine 3dBm min
HCMOS
Aging at 25°C after 30 days operation:
±0.5ppb/day, ±50ppb/year for 100MHz
±2.0ppb/day, ±0.2ppm/year for 300MHz
Voltage: 3.3, 5,12V
Current consumption: 700mA maximum at turn-on, (at 5Vcc) 200mA maximum after warm-up at 25°C
Short term stability: 1x10-11 for 100MHz
2x10-11 for 300MHz
SSB phase noise (100MHz, typical):
105dBc@10Hz
135dBc@100Hz
148dBc@1kHz
155dBc@10kHz
Carton size: 25 x 25 x 12.7mm
36 x 27 x 19mm
20.2 x 20.2 x 12mm
Q:397635654 E-mail:export@bjcec.com
