Product Details
- Size: 13.4X8.5X11.0mm
- Place of Origin: CHINA BEIJING
- Brand Name: space

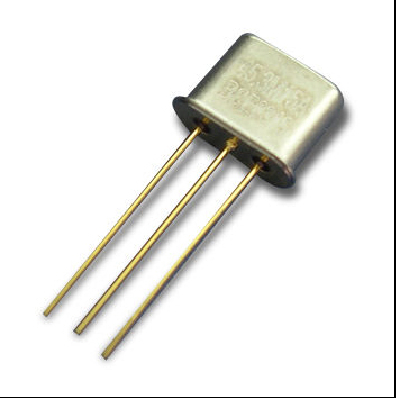

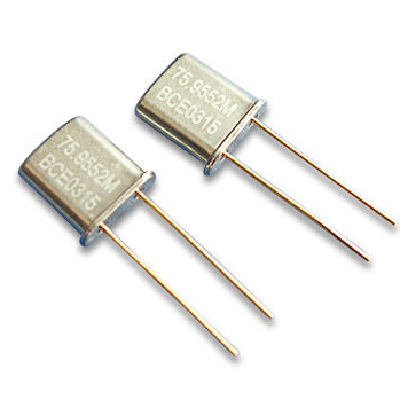

- Model Number: Crystal filter
- Weight: 3.000 kg
Nominal frequency: 45MHz
Bandwidth @3dB: 7.5kHz
Stop band width(70dB): 30KHz
Pass band ripple (max): 1.0dB
Insertion loss(max): 5.0dB
Guaranteed attenuation: 70dB
Spurious response: 20dB
Terminating impedance: 700Ω/2.0pF
Packing: 13.4X8.5X11.0mm
