- Size: 57x48x34cm
- Place of Origin: China bejing
- Brand Name: space

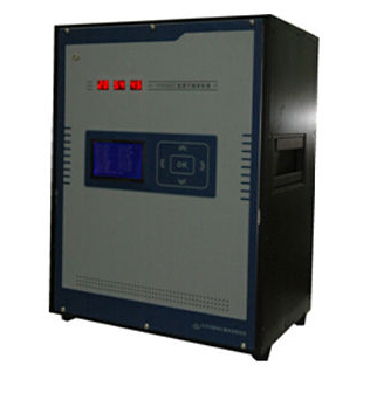

- Model Number: Hydrogen maser
- Weight: 1.000 kg
Frequencies: 5MHz and 10MHz
Stability: 5E-15/ºC
Frequency drift: 5E-15/Day
Supply voltage: 85~264VAC
External DC input: 22 to 28 VDC
Peak power:110W max
Steady state @ 25ºC: 90W min
Output wave form: sine
Output level:
5MHz: 12dBm min
10MHz: 12dBm min
Load: 50Ω
Power source sensitivity: 1.0E-14/V
Synthesized frequency resolution: 1.0E-15
Magnetic sensitivity: 1.0E-14/Gauss
Timing output:
Format: 1PPS (positive going pulse)
Amplitude: 3 V - 5V (TTL compatible)
Pulse width: 10μs - 20μs
Rise time: 10ns
Jitter: 100ps RMS
Short term stability:
5E-13/S
1E-13/10S
2E-14/100S
8E-15/1000S
Phase noise:
Outputs 5MHz
1Hz: ≤-105dBc
10Hz: ≤-120dBc
100Hz: ≤-140dBc
1KHz: ≤-150dBc
10KHz: ≤-150dBc
Size: 57x48x34cm
Weight: 120 lbs (55kg)
